1969 Camaro build

Custom 1969 Camaro Build

A twin turbo Nelson Racing 427 LS, a Detroit Speed chassis and a widened body. Here’s how we built a Camaro you can drive hard and drive home.

Featured in All Chevy Performance, June 2024
427
Cubic inch twin turbo LS
T56
Six speed manual
14 in
Wilwood rotors, six piston calipers
9
Months of actual build time

This 1969 Camaro is one of the cars people ask us about most. It’s a pro touring build: a classic body with the engine, chassis and brakes of a modern performance car. Nostalgia Hot Rods built it in our shop at 1196 Wigwam Parkway, Henderson, NV 89074, and you can reach us at (702) 369-7037. Here is the build, part by part, with the source for each spec.

What makes it a pro touring Camaro

A pro touring car keeps the classic shape but drives like something new. It turns, stops and holds the road. It isn’t a drag car. It isn’t a trailer queen either.

The 1969 Camaro is a great place to start. The body is light and the shape is famous. But the original chassis, steering and brakes were built for 1969 roads and 1969 tires.

So we kept the shape. Then we changed nearly everything you feel from the seat. Engine, transmission, subframe, rear suspension, brakes, wheels and the cabin all came out new.

The spec sheet

These specs come from the published features on this car and from our own build notes. Where two sources disagree on a number, we leave that number off this page until we have confirmed it.

AreaWhat’s on the carSource
EngineNelson Racing Engines 427 LS, twin turbo, on a Dart LS Next blockAll Chevy Performance, Jun 2024
TransmissionTranzilla T56 six speed with a McLeod twin disc clutchIn The Garage Media, Jul 2024
Rear axleTCI narrow nodular 9 inch with an Eaton limited slip and 3.73 gearsOur build notes and ITG, Jul 2024
Front chassisDetroit Speed hydroformed subframe with Strange coiloversIn The Garage Media, Jul 2024
Rear suspensionDetroit Speed QUADRALink with Strange coiloversIn The Garage Media, Jul 2024
BrakesWilwood six piston calipers and 14 inch rotors, front and rearOur build notes and ITG, Jul 2024
Wheels and tiresHRE 18 x 9.5 front, 19 x 13 rear, Nitto NT05In The Garage Media, Jul 2024
BodyFront fenders widened 1.5 inches, rear widened to fit the 13 inch wheelsOur build notes and ITG, Jul 2024
PaintPPG Tuxedo BlackIn The Garage Media, Jul 2024
InteriorSparco seats with carbon fiber backs made in our shop, Holley dash, air conditioningOur build notes

The engine and drivetrain

The engine is a 427 cubic inch LS built by Nelson Racing Engines, with twin turbos. It sits on a Dart LS Next block, a race block made to handle the boost this kind of build makes.

Power goes through a Tranzilla T56, a heavy duty version of the six speed manual, and a McLeod twin disc clutch. A twin disc clutch holds more power without a pedal that wears out your leg in traffic.

Out back is a TCI narrow nodular 9 inch rear end with an Eaton limited slip and 3.73 gears. Narrowing the rear end is what lets wide tires tuck under the body.

You may have seen different horsepower figures for this car. Published sources don’t agree, so we’re confirming the right numbers before we print one here.

A C2 Corvette body stripped to primer on stands in the Nostalgia Hot Rods shop, with a builder working at the nose
In the shop
Every chassis, body and paint job starts on this floor

Chassis, suspension and brakes

Up front, the stock subframe was replaced with a Detroit Speed hydroformed subframe and Strange coilovers. That fixes the two weak spots of an old Camaro: soft steering and a front end that dives.

At the back, a Detroit Speed QUADRALink rear suspension locates the axle. It keeps the car straight under hard throttle, which matters a lot with this much power.

We also braced the chassis with stiffening bars tied into the roll cage. A stiff car handles better and stays quieter over the years. It also feels tighter every time you turn in.

Stopping is just as serious. Wilwood six piston calipers clamp 14 inch rotors at all four corners. Big power needs brakes to match.

Built to be driven

All Chevy Performance said it in June 2024: our builds are meant to be driven, with horsepower, driveability and comfort all taken seriously. This car has air conditioning for a reason.

Want a pro touring Camaro of your own?

Tell us the car you have, or the one you want, and we’ll talk through the build.

Body, wheels and interior

To fit the big HRE wheels, the body had to grow. The front fenders were widened 1.5 inches and the rear was widened to suit the 19 x 13 wheels. The sheet metal work was done in our shop.

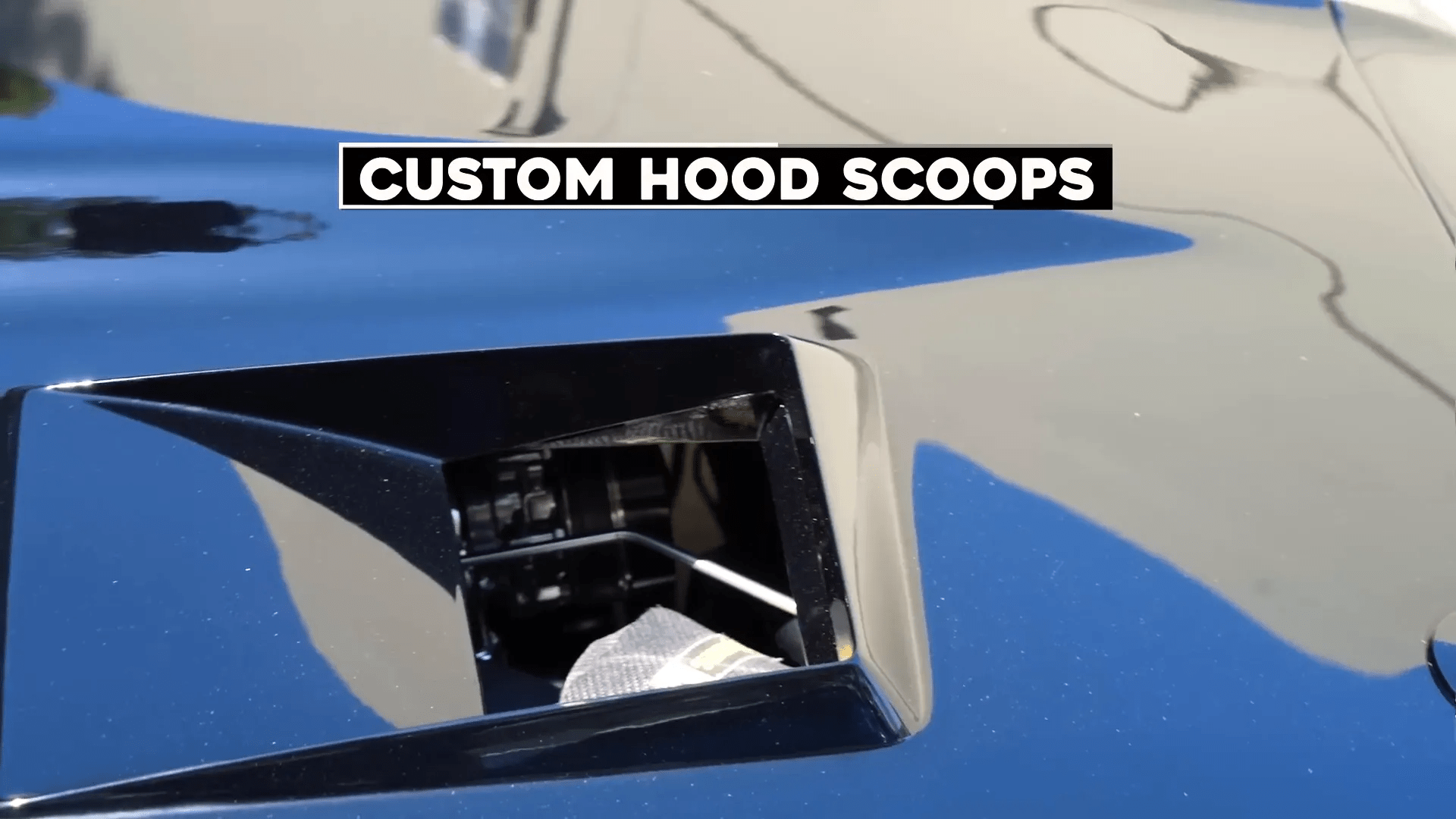

A front splitter and custom metal hood scoops were made for the car too. They change the look up front and help it stay planted at speed.

The paint is PPG Tuxedo Black. Black is honest. It shows every wave and ripple in the bodywork, so every widened panel on this car had to be cut, welded, shaped and blocked straight by hand before a single coat of color went on, and that part of the build took as much patience as anything under the hood.

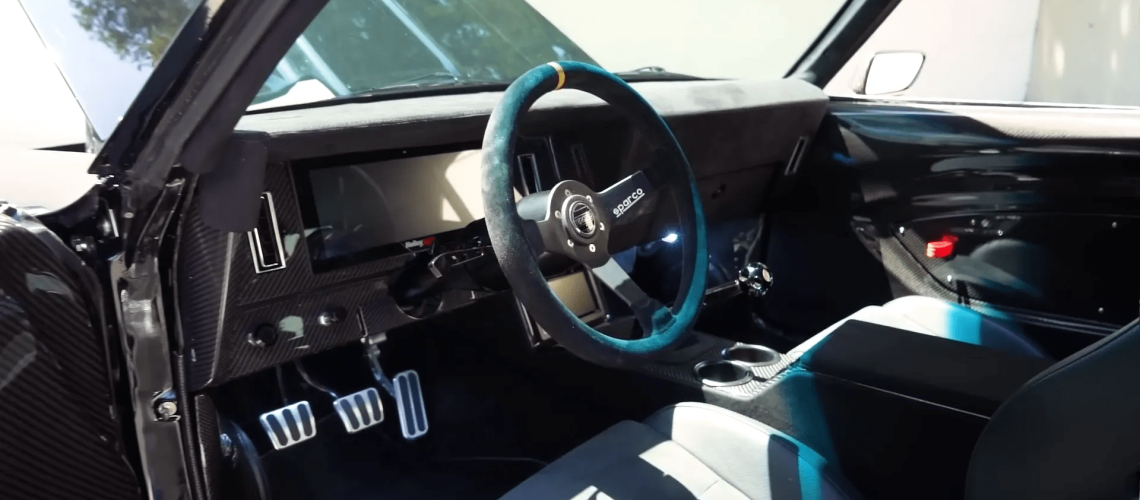

Inside, the car has Sparco seats with carbon fiber backs we made in-house. A Holley dash shows the gauges, and the car has air conditioning, which you’ll want in a Las Vegas summer.

How long it took

The bulk of this build took about nine months of actual work time. The car was in our shop for close to two years in total, because a custom build waits on parts and on decisions.

That’s normal for a car like this. All Chevy Performance reported in June 2024 that our projects typically take 9 to 12 months. Dustin put our average higher in March 2023, at about a year and a half to two years. A build with this much fabrication sits at the long end.

Plan for the timeline before you plan for the paint color. It’s the part people underestimate most.

Why builds wait

Custom parts like wheels, seats and engines are often made to order. When a part runs late, the car waits. That is part of every custom build, and it is why the calendar time runs longer than the shop hours.

Starting your own Camaro build

You can bring us a car or ask us to build from one you haven’t found yet. Either way, we start by talking about how you’ll drive it: road trips, track days, shows, or a mix.

That answer sets the engine, the chassis and the brakes. A track focused car and a long distance cruiser want different parts, even when they look the same parked.

You don’t need to live nearby. Our builds ship to collectors and enthusiasts across the country and overseas. When the car’s done, it ships to you.

Want to see a different kind of build? Look at our supercharged 1957 Chevy Bel Air or our 1963 Split Window Corvette.

FAQ

Common Questions

How much does a custom Camaro build cost?

It depends on the car you start with and the parts you choose. We don’t publish prices. We quote each build after we talk through what you want, so call (702) 369-7037 or use the quote form.

How long does a build take?

Our projects typically take 9 to 12 months, as All Chevy Performance reported in June 2024. Dustin put our average higher in March 2023, at about a year and a half to two years. This Camaro took about nine months of actual work.

Can you build a car for a client out of state or overseas?

Yes. Our builds ship to collectors, racers and enthusiasts across the world. You don’t need to be near Las Vegas to have us build your car.

Do you do restorations as well as custom builds?

Yes. We do classic car restoration as well as full custom builds, chassis work, suspension, sheet metal, body and paint, and interiors.

Start your Camaro build

Tell us about your car and how you want to drive it. We’ll walk you through the build.
